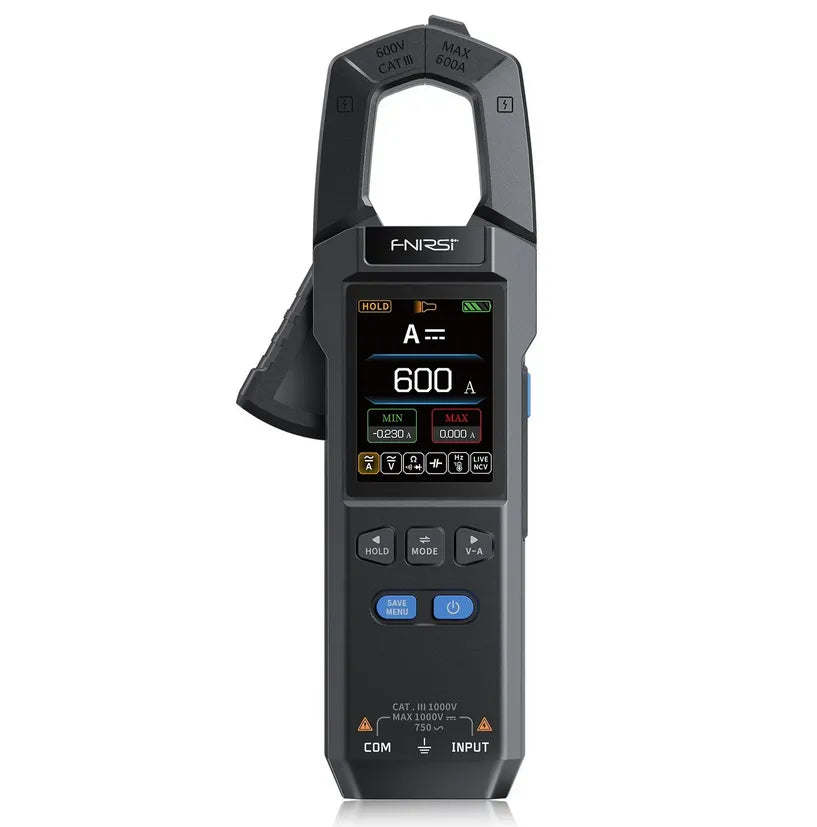

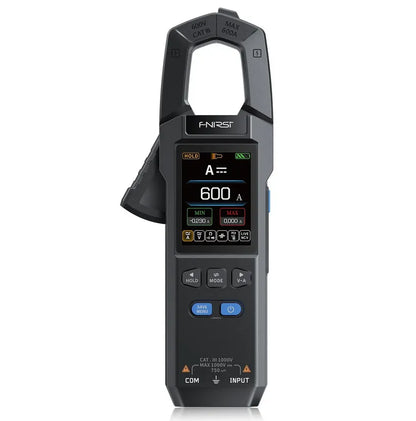

FNIRSI DMC-100 DC AC Current Voltage Clamp Meter Digital Multimeter

Product Description

The FNIRSI DMC-100 is a high-precision digital clamp meter offering 10,000 counts for accurate measurements. It supports a wide range of applications with voltage up to 750V and current up to 600A, suitable for both AC and DC. Designed for professionals, it excels in engineering maintenance, laboratory research, vehicle diagnostics, and home electrical troubleshooting, providing reliable and efficient performance across diverse tasks.

 Features

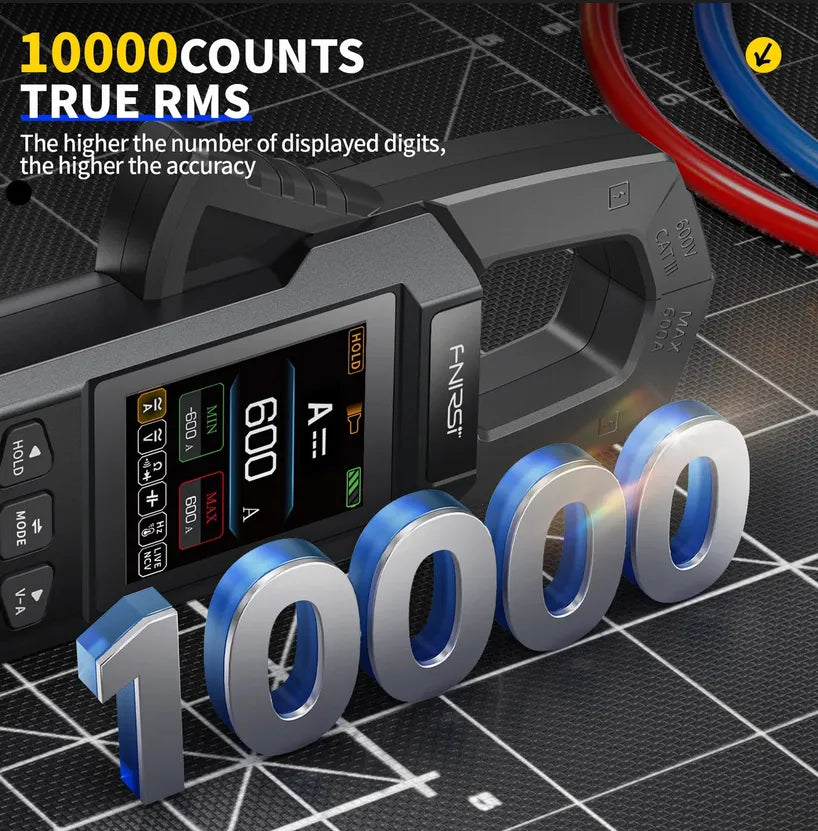

• High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings.
• Wide Measurement Range: Supports up to 750V voltage and 600A current.
• High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals.
• Intuitive Interface: New UI with data curve display for easy reading at a glance.

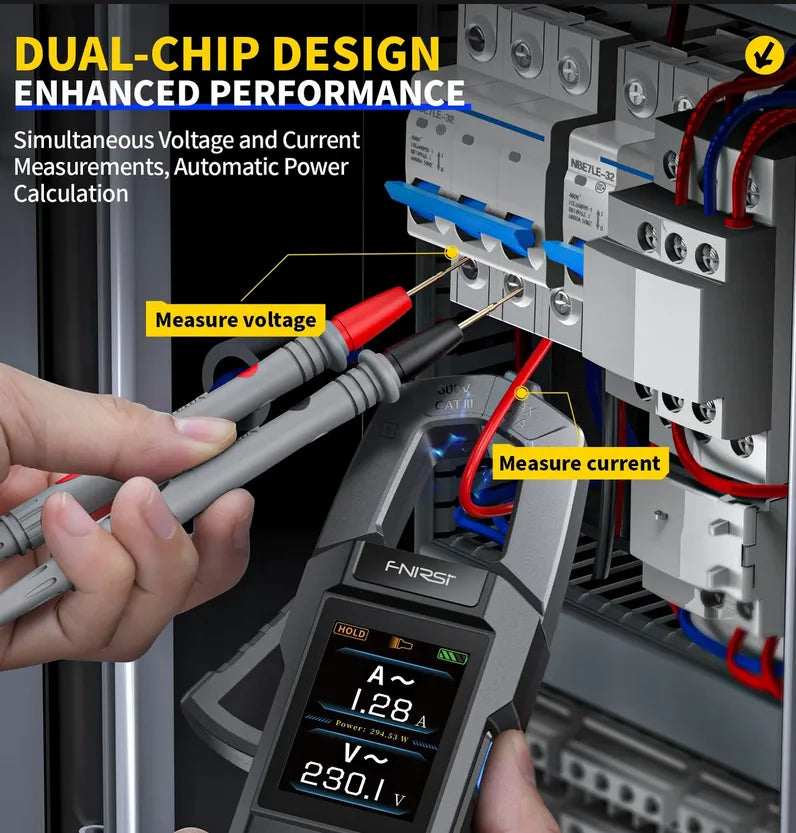

• Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes.

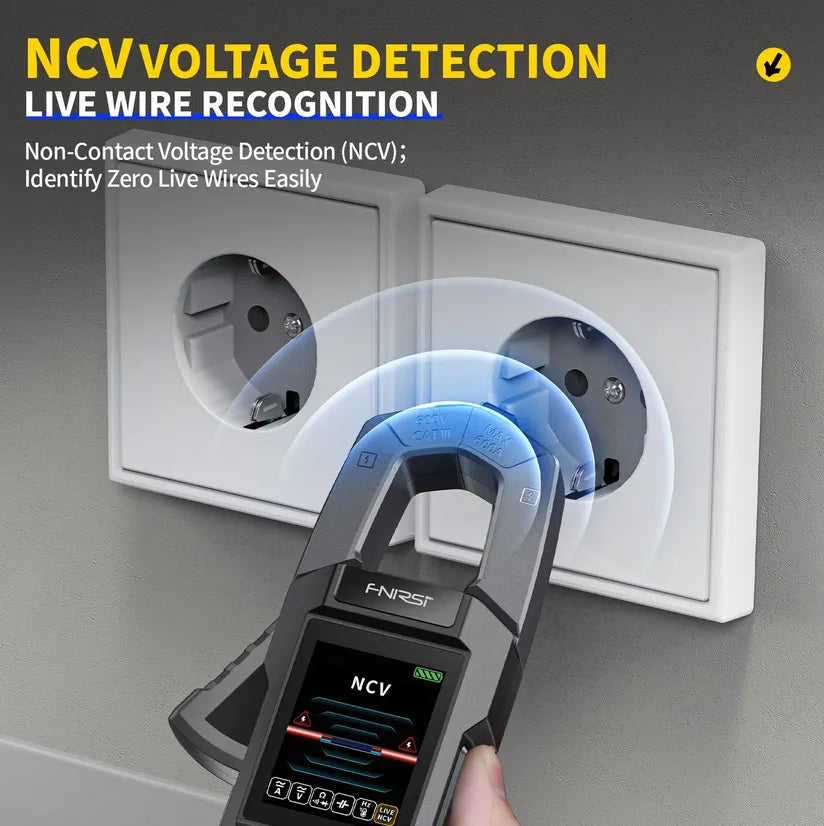

• NCV Function: Non-contact voltage measurement and zero/fire line identification.
• Wide Temperature Range: Measures temperatures from -55°C to 1300°C.
• Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage.
• Type-C Interface: Convenient charging and data transmission via Type-C port (only for firmware transmission).
• Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities.
• Auto Power-Off: Intelligent automatic shutdown to conserve battery life.
• Temperature Unit Switching: Easily switch between temperature units (℃/℉).
• Adjustable Brightness: Screen brightness is adjustable for various environments.
• Firmware Upgradeable: Supports firmware updates to enhance functionality. Specifications

Brand FNIRSI Model DMC-100

Screen 2.0'' TFT color screen Screen Resolution 240*320 pixels

Battery 3.7V, 1500mAh Lithium Battery Charging Specification USB Type-C, 5V/1A

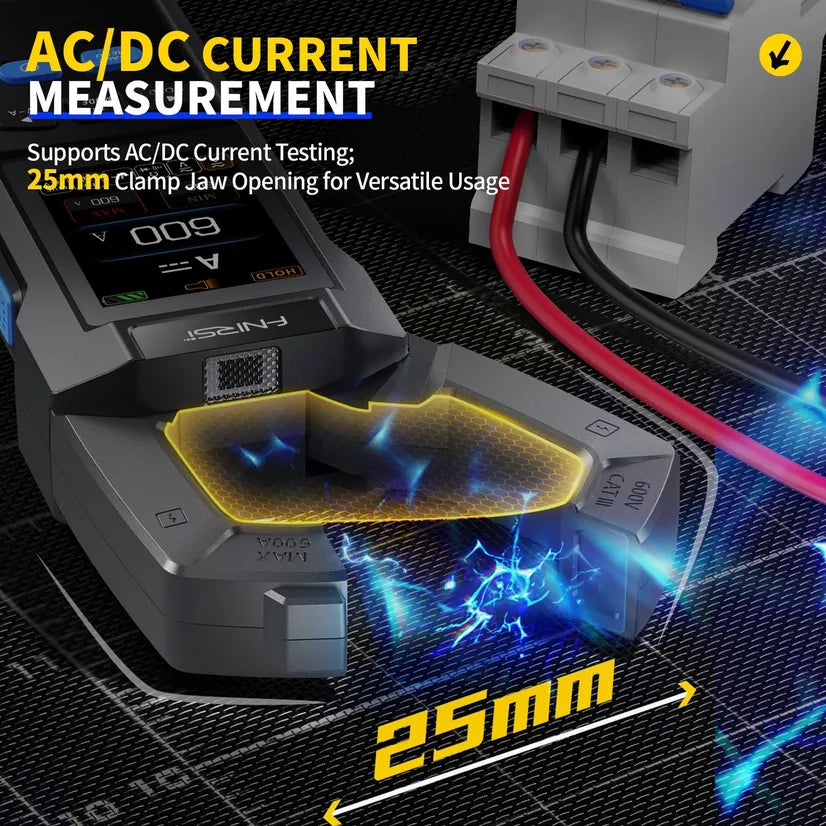

Maximum Jaws Size 25mm Temperature Unit ℃/℉

Product Size 193x74x32mm Product Weight 194g

DC Voltage 9.999V / 99.99V / 999.9V AC Voltage 9.999V / 99.99V / 750.0V

DC & AC Current 99.99A / 600.0A Resistance 99.99MΩ / 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω

Capacitance 9.999mF / 99.99mF / 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF

Frequency 9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz

Temperature -55~1300℃ / -67~2372℉ Diode Measurement Support

On-off Test Support Non-Contact Voltage Check (NCV) Support

Zero Fire Wire Check Support Measuring Mode 1. General Measurement 2. Waveform Display 3. Power Measurement

Measurement Gear Manual Adjustment Torch Support

Data Zeroing Support Maximum/Minimum Value Support

Waveform Display Support Power Calculation Support

Data Hold Support Data Storage and Viewing Up to 30 groups of data

Language Chinese / English Brightness Adjustment 10-speed adjustment

Auto Power Off OFF / 5min / 15min / 30min Firmware Upgrade Support

AC Current 4A / 40A / 600A Resistance 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ
