Glamor Collection

FR C1 BT USB Tester

Rs.12,870.00

~~Rs.16,770.00~~ Rs.12,870.00

Sale Sold out

Shipping calculated at checkout.

Color: Grey

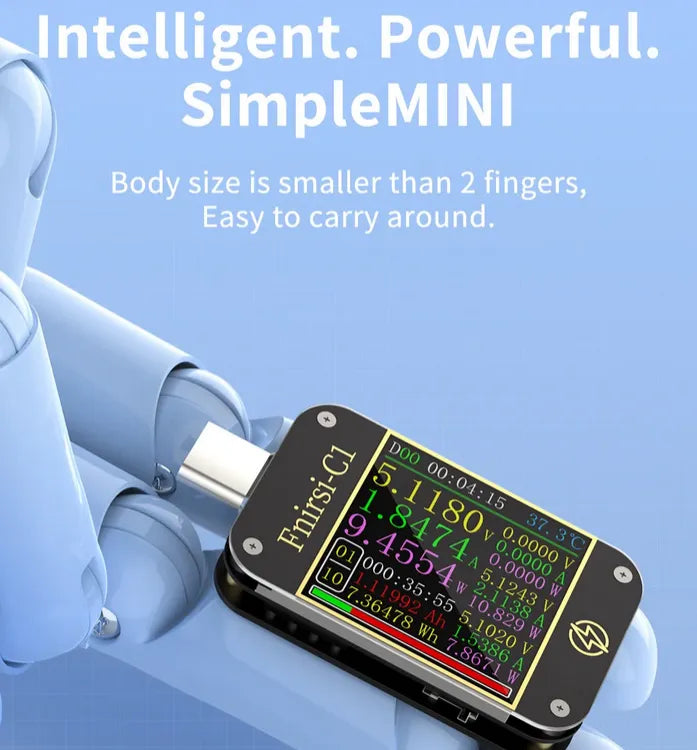

Product Details of FNIRSI C1 USB Tester Voltmeter Ammeter Type-C PD Trigger Test Type-C Meter Power Bank Tester with PC Software

Description

Performance description

Input monitoring port: TYPE-C, 24-PIN male;
Output monitoring port: TYPE-C, 24-PIN female socket;
PC connection port: Micro-USB, 5-PIN female socket.

FNIRSI-C1 Features:

Monitoring voltage: 4~24V Monitor voltage resolution: 0.00001V Monitoring voltage accuracy: ±(0.2‰+2) Monitoring current: 0~6.5A Display current resolution: 0.00001A Monitoring current accuracy: ±(0.5‰+2) Display power: 0~130W Display current resolution: 0.00001W Monitoring current accuracy: ±(0.5‰+2) Load equivalent resistance: 0~9999.9Ω Load equivalent resistance resolution: 0.0001Ω Load equivalent resistance accuracy: ±(0.5‰+2) Capacity: 0~9999.99Ah Use energy: 0~9999.99Wh Cable resistance: 0~9999.9Ω D+/D- voltage: 0~3.3V D+/D- voltage resolution: 0.001V D+/D- voltage accuracy: ±(1.0%+2) Equipment temperature: ℃/℉ Package size: 50*25*8mm / 1.97* 0.98 * 0.31in Package weight: 47g / 1.66oz
