FR FNB38 USB Tester

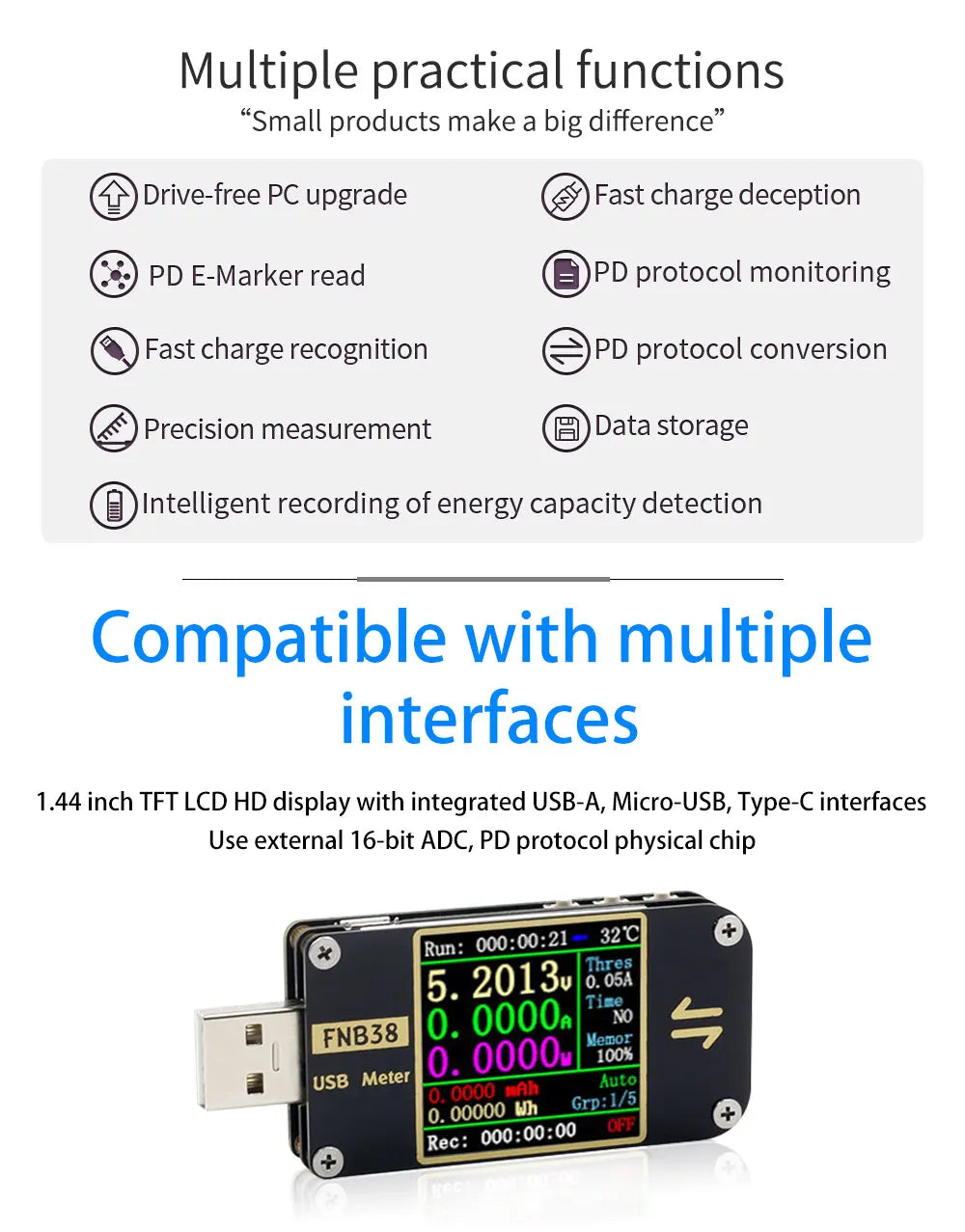

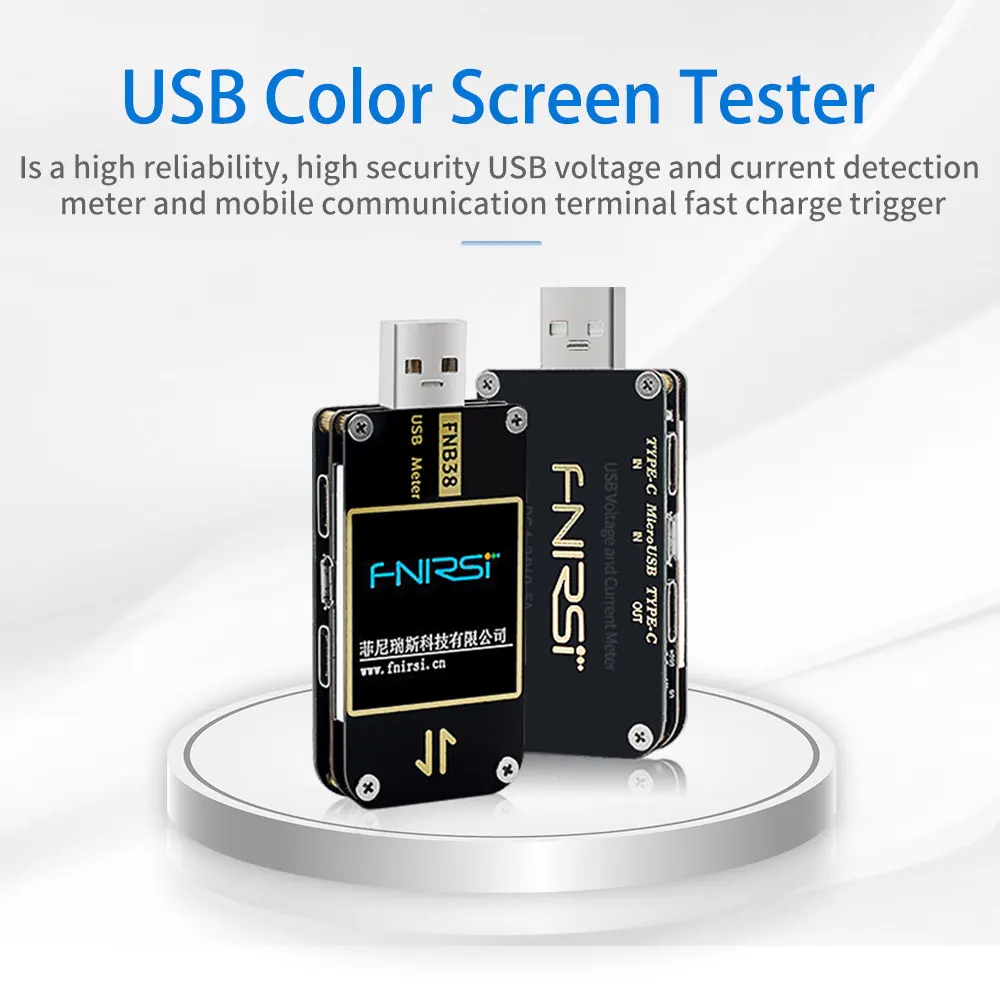

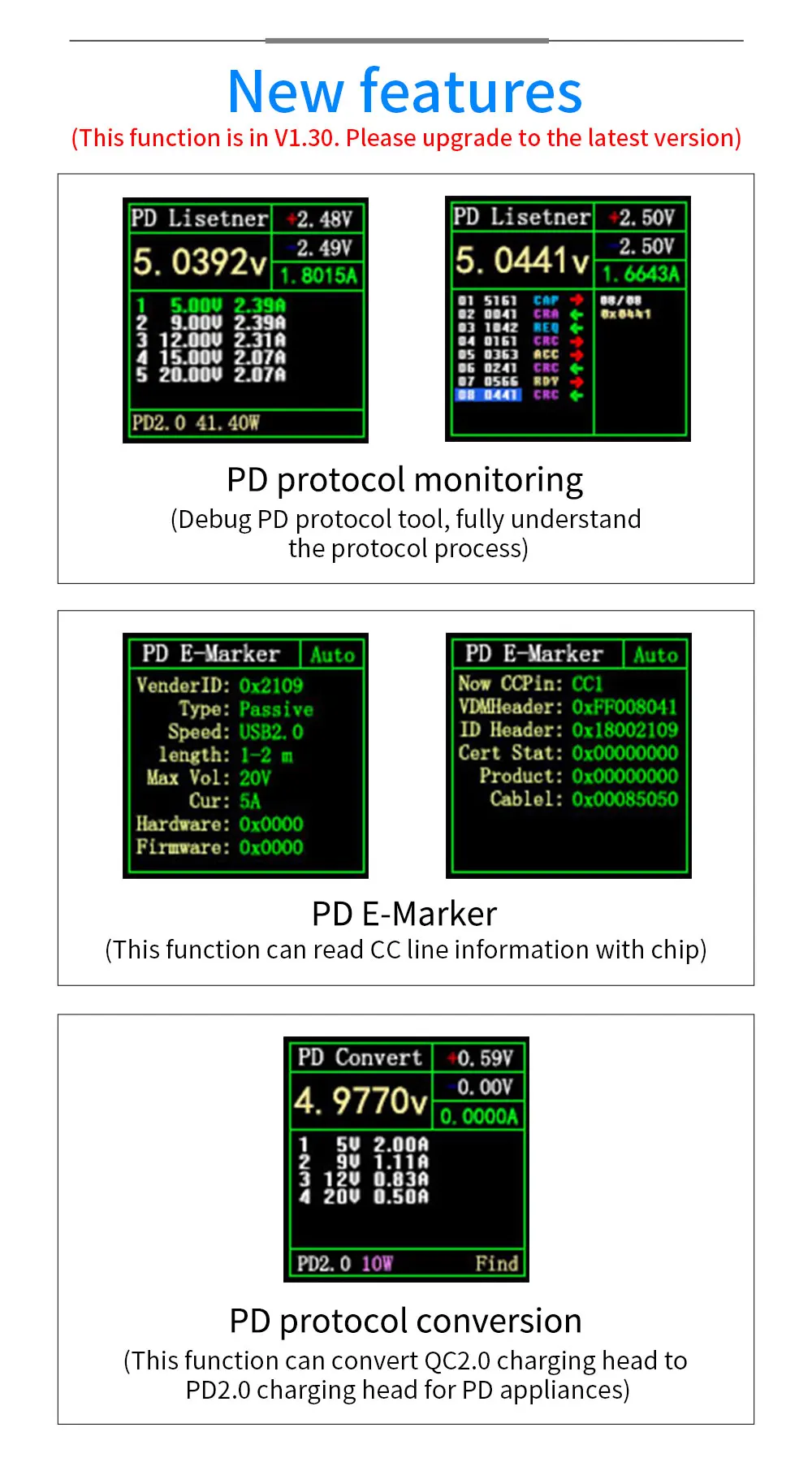

• It is a USB tester with high reliability and security for detecting the USB voltage and current as well as a mobile communication terminal fast charge triggers. • USB 2.0 interface, 1.44 inch TFT LCD high definition display with integrated USB-A, Micro-USB, Type-C interfaces, use external 16-bit ADC, PD protocol physical chip. • Drive-free PC upgrade, PD E-Marker read, fast charge recognition, fast charge deception. • PD protocol monitoring, PD protocol conversion, precision measurement. • Data storage, intelligent recording of energy capacity detection. • One screen display, multiple interfaces compatible. • Can be used for fast charge protocol detection, QC2.0 trigger, QC3.0 trigger, for Huawei-FCP trigger, for Huawei-SCP trigger, for Samsung-AFC trigger, PD protocol trigger and so on.

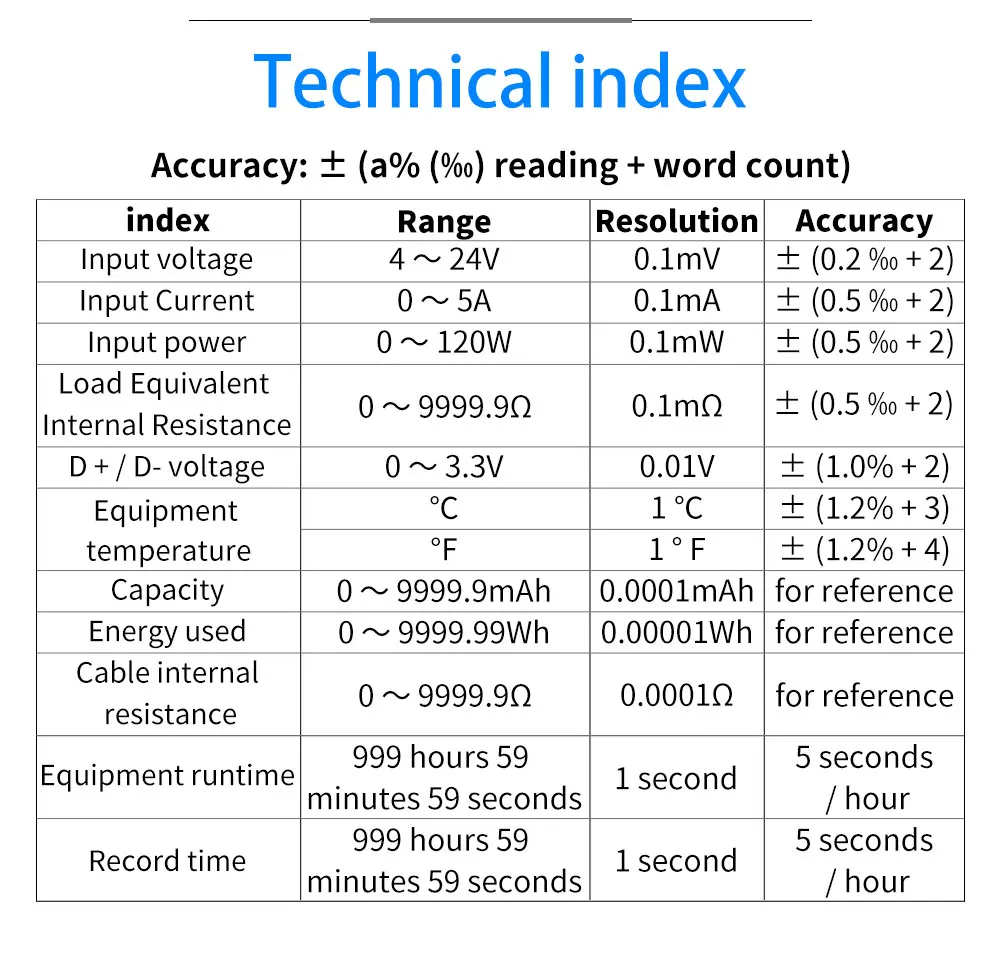

Describe

Material: ABS

Color: black

Input voltage: 4~24V

Resolution: 0.1mV

Accuracy: ±(0.2‰+2)

Input current: 0~5A

Resolution: 0.1mA

Accuracy: ±(0.5‰+2)

Input power: 0~120W

Resolution: 0.1mW

Accuracy: ±(0.5‰+2)

Load equivalent internal resistance: 0~9999.9Ω

Resolution: 0.1mΩ

Accuracy: ±(0.5‰+2)

D+/D- voltage: 0~3.3V

Resolution: 0.01V

Accuracy: ±(1.0%+2)

Equipment temperature:

Range: ℃, ℉

Resolution:

℃: 1℃

℉: 1℉

Accuracy:

℃: ±(1.2%+3)

℉: ±(1.2%+4)

Capacity: 0~9999.9mAh

Resolution: 0.0001mAh

Accuracy: for reference

Energy used: 0~9999.99Wh

Resolution: 0.00001Wh

Accuracy: for reference

Cable internal resistance: 0~9999.9Ω

Resolution: 0.0001Ω

Accuracy: for reference

Equipment runtime:

Range: 999 hours 59 minutes 59 seconds

Resolution: 1 second

Accuracy: 5 seconds / hour

Record time:

Range: 999 hours 59 minutes 59 seconds

Resolution: 1 second

Accuracy: 5 seconds / hour

Package included:

1 x FNIRSI FNB38 USB tester

Notes:

1. Do not connect a power supply exceeding 24V to the tester.

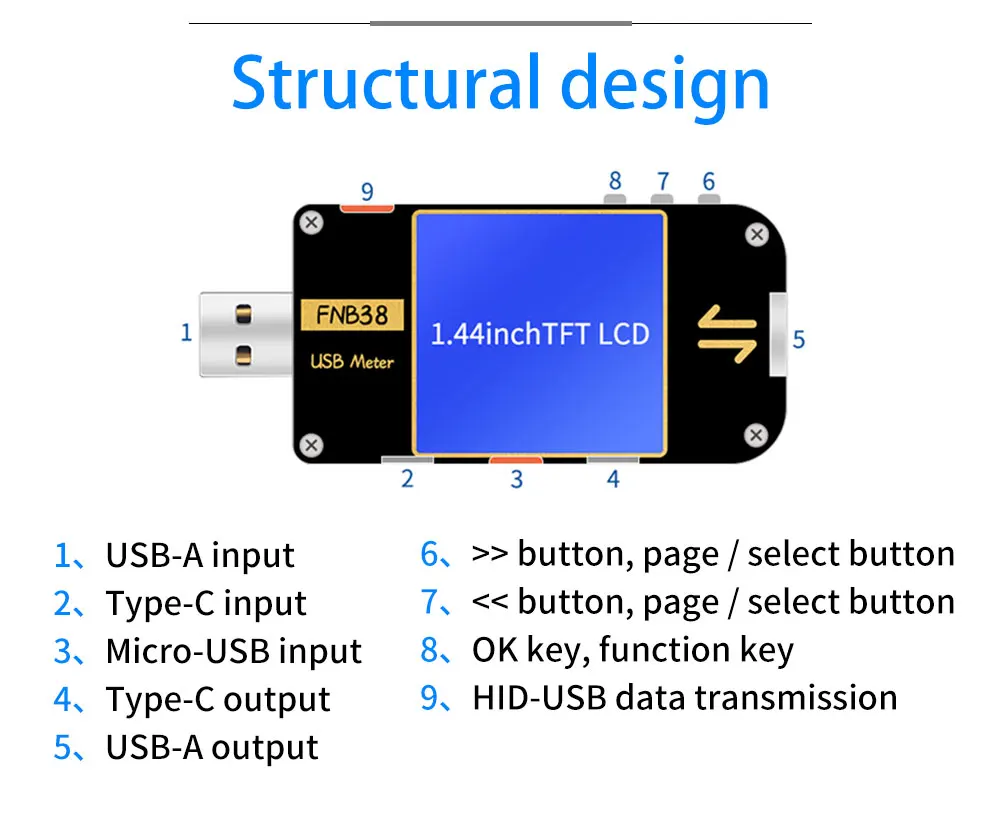

2. The FNB38 USB-A input port supports high-power input (such as 20V * 5A = 100W. The USB-A output port can withstand 5A current for a short time, The Micro-USB input port does not support large current and high power, and its input current cannot exceed 2.5A. When using high current and high power, it is recommended to use Тype -C female output.

3. The HID-USB interface is only used for data transmission

4. When using high voltage and high power, the temperature of the tester will rise. Please be careful to prevent burns.

!When upgrading the firmware of the USB tester, you need to confirm the model first. Please do not use the firmware of other models to upqrade to avoid unexpected errors
