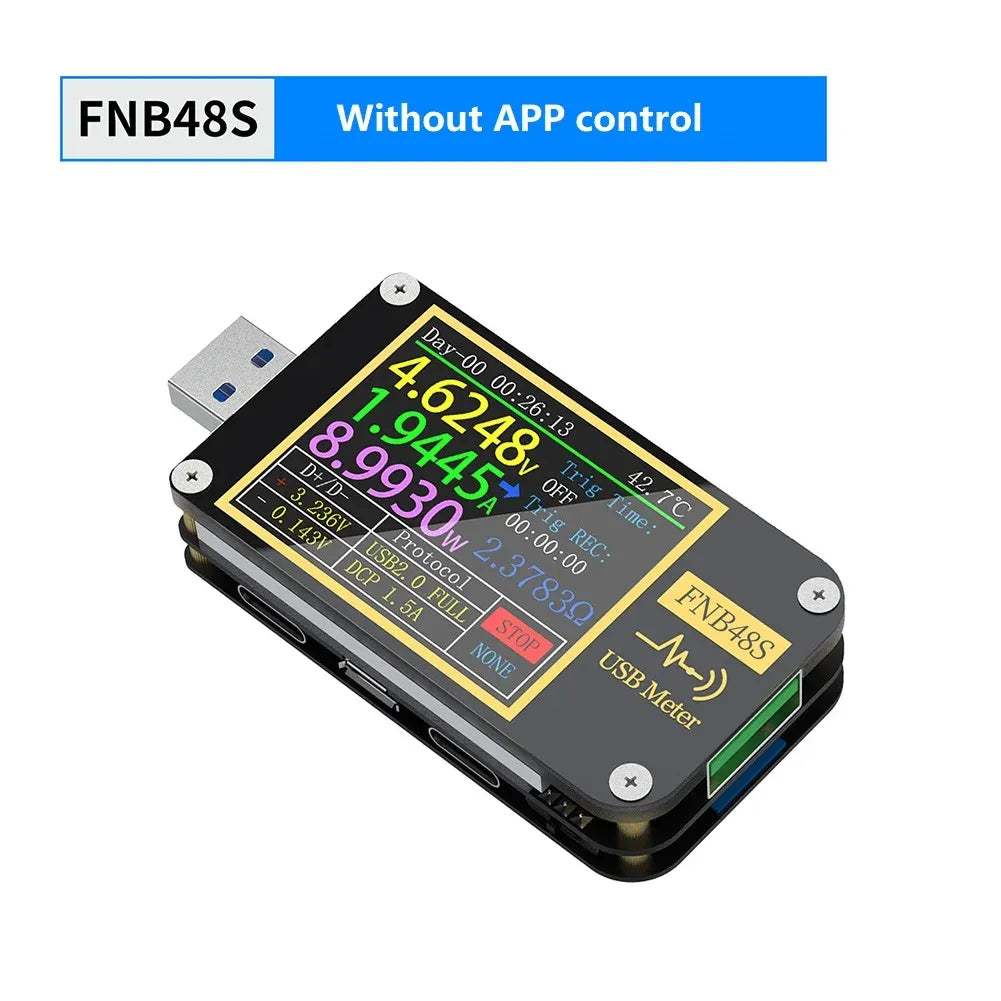

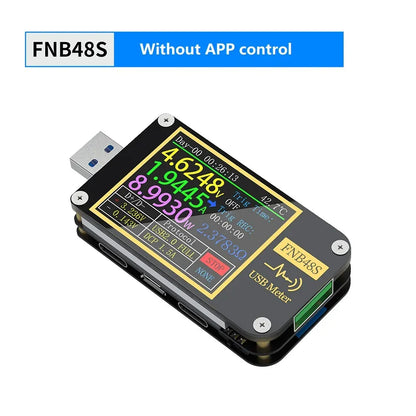

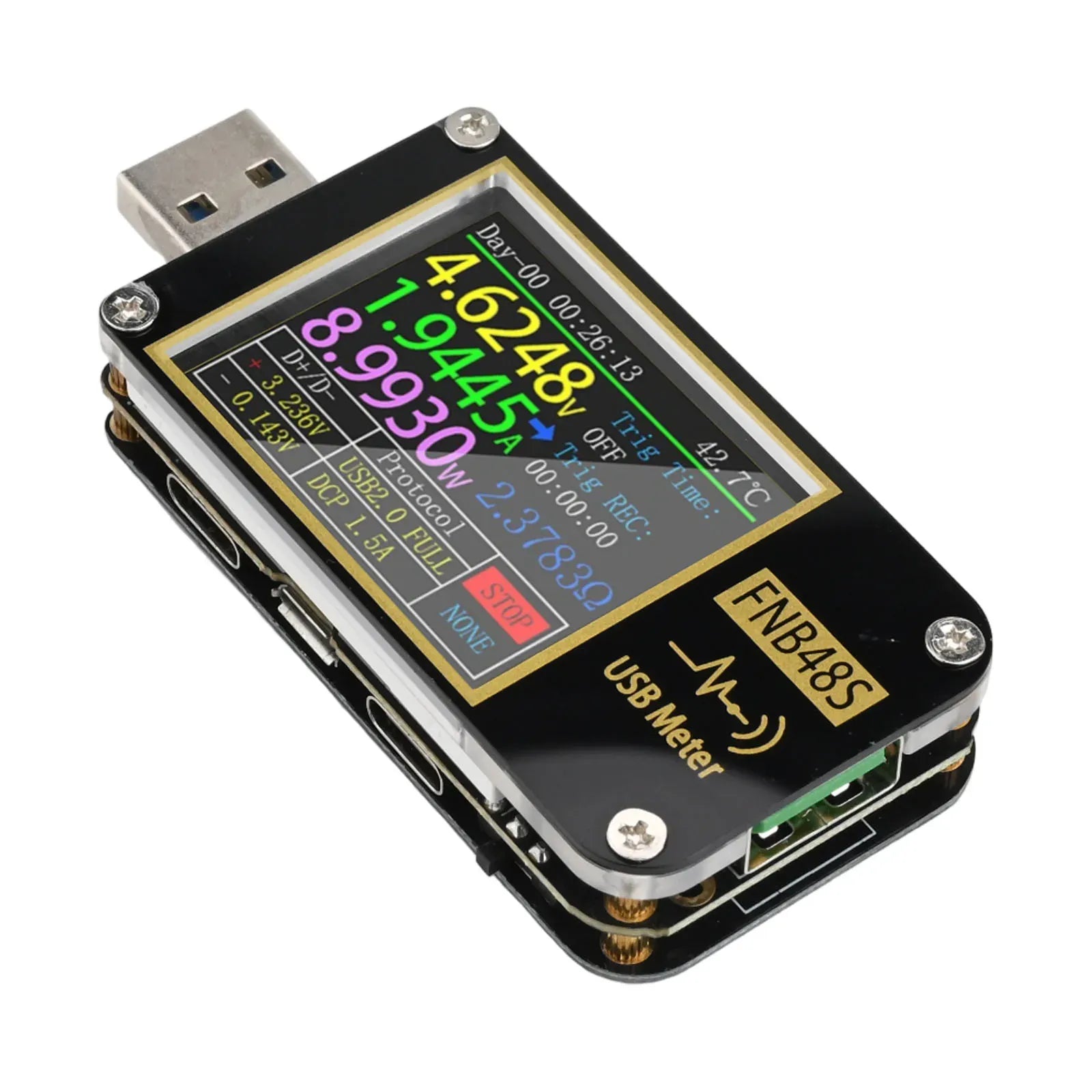

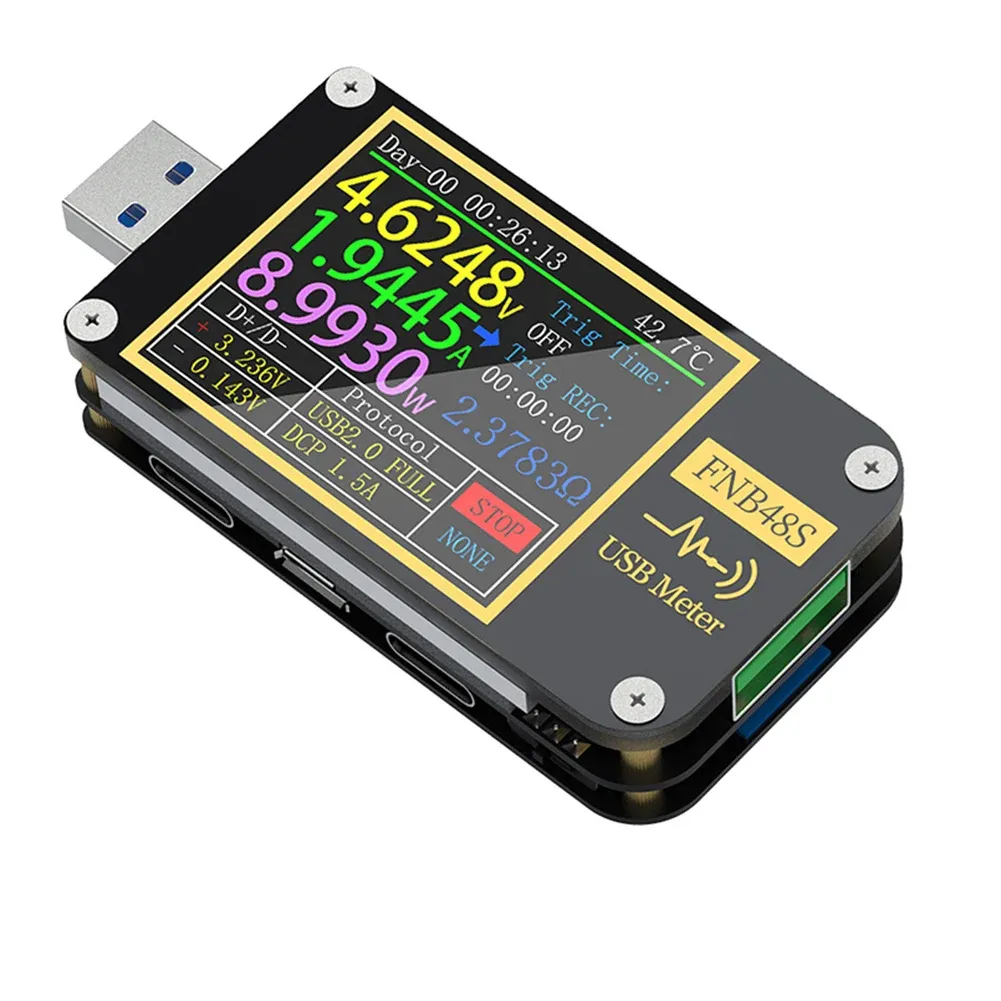

FR FNB48S USB Tester

Rs.9,100.00

~~Rs.11,000.00~~ Rs.9,100.00

Sale Sold out

Shipping calculated at checkout.

Color: Black

PRODUCT DETAILS OF FNB48S USB Tester

Feature:

*Multi-function fast charging protocol detector: integrated USB-A, -USB, Type-C interface, with 1.77-inch high-definition display, using external 16-bit ADC, PD protocol physical chip, real-time monitoring of voltage and current during charging , power, electricity, capacity, charging protocol, curve waveform, etc.

*6-digit high- for precision display: -click switching between 5-digit -digit display, maximum resolution 0.00001, real-time monitoring of subtle changes in voltage, current and power during charging

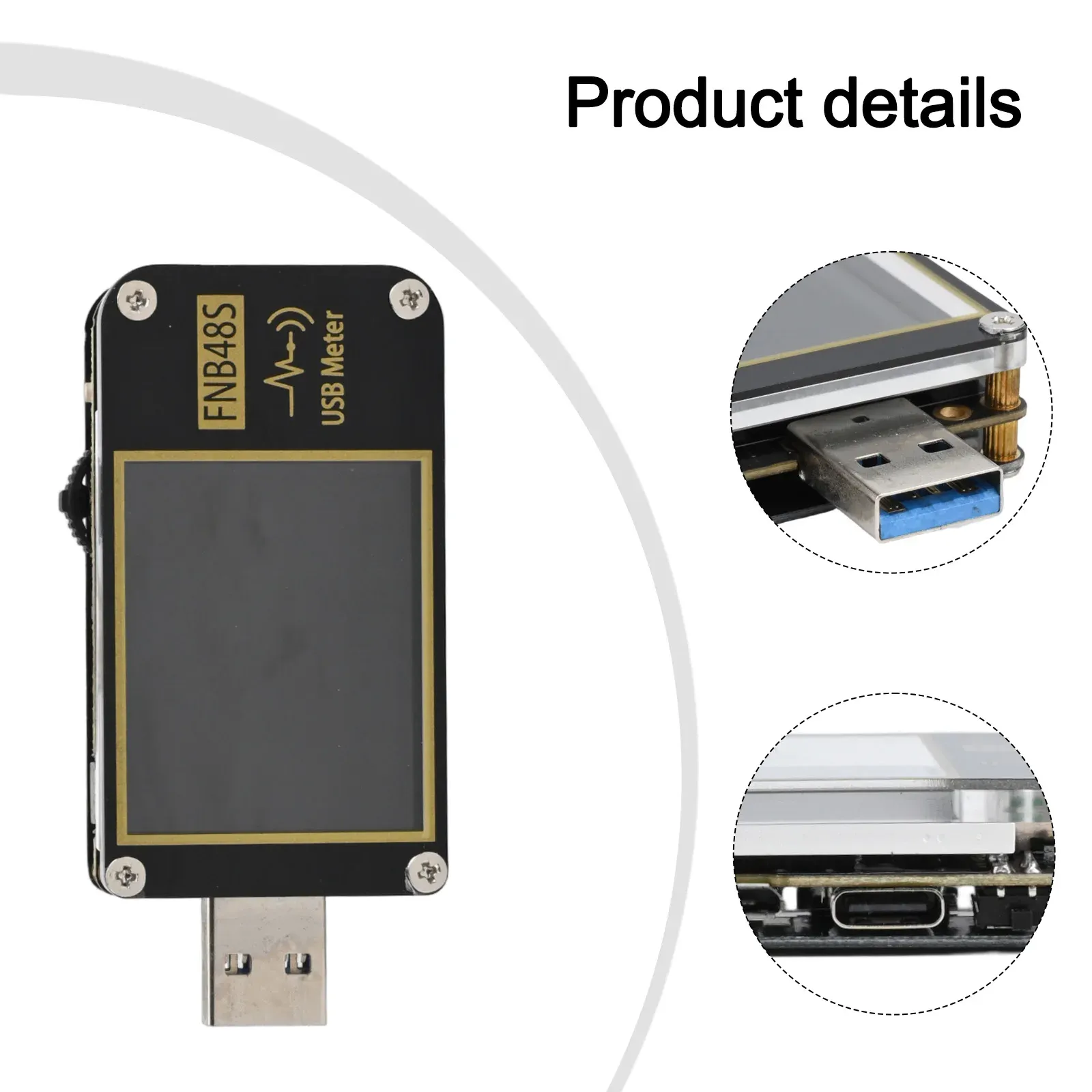

*New interface upgrade: FNB48S uses USB3.0 interface, 9-pin pin design, backward compatible with USB2.0, ten times the transmission rate of USB2.0.

*Multiple sets of data recording battery capacity calculation: FNB48S can record up to 10 sets of measurement data, and the measured data can be used for battery capacity calculation

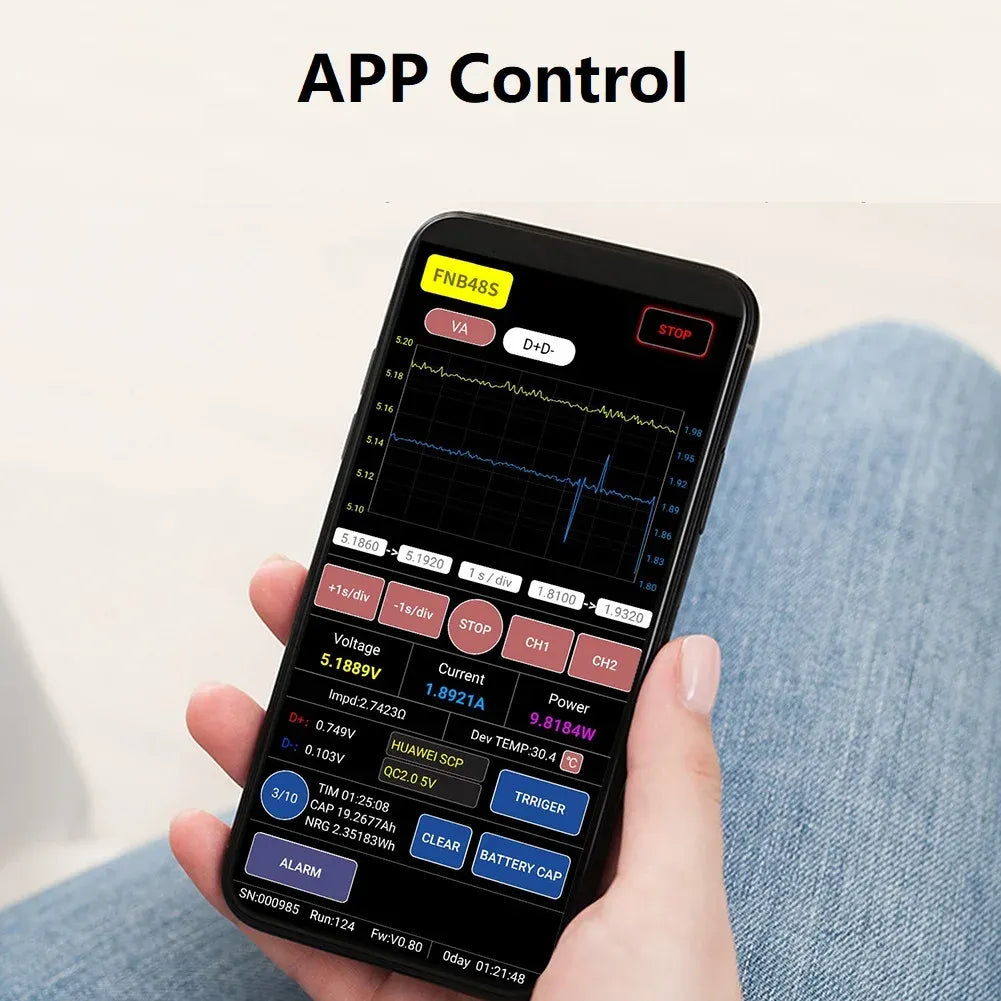

*Driver-free installation: integrates data management, protocol control, and firmware upgrades to support monitoring and recording voltage and current curves; protocol single triggering and smart triggering and other functions

Specification:
Part Name: USB tester
Model: FNB48S
Material: Metal and Plastic
Color: Black

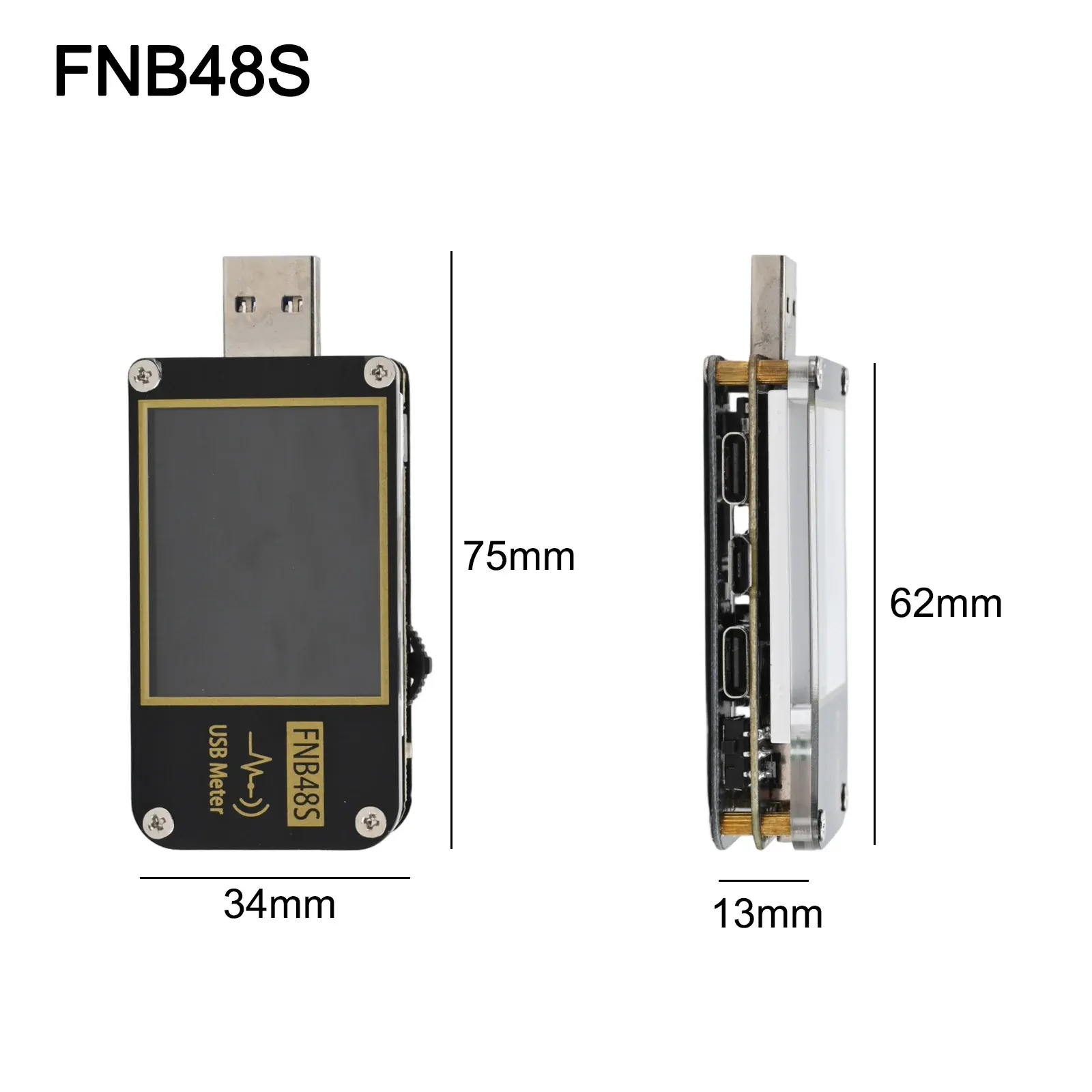

Product size: 75*34*13mm
Range, resolution
Input voltage: 4~24V, 0.00001V
Input current: 0~6.5A, 0.00001A
Input power: 0~156W, 0.00001W
Load equivalent internal resistance: 0~9999.9Ω, 0.0001Ω
D+/D- voltage: 0~3.3V, 0.001V
Device temperature: 1°C, 1°F
Capacity: 0~9999.99mAh, 0.00001mAh
Electricity consumption: 0~9999.99Wh, 0.00001Wh
Cable internal resistance: 0~9999.9Ω, 0.0001Ω
Equipment running time: 99 days 23 hours 59 minutes and 59 seconds, 1 second
Recording time: 999 hours 59 minutes and 59 seconds, 1 second
Package Contents:
1*FNB48S USB tester
