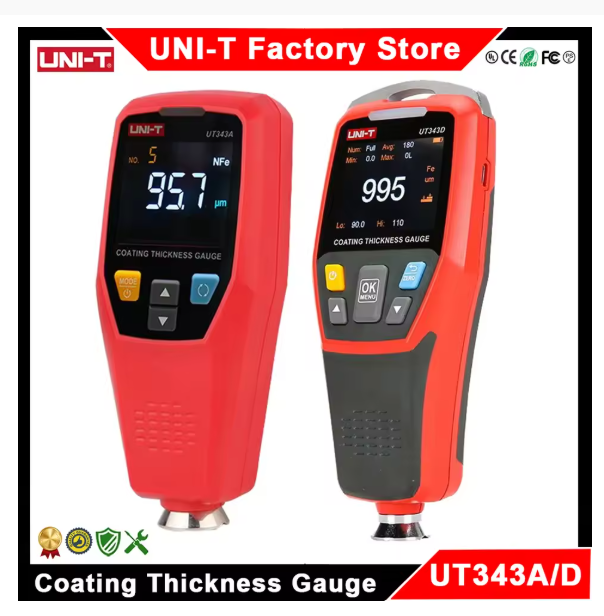

UNI-T UT343A UT343D Car Paint Coating Thickness Gauge Digital Meter FE NFE Tester for Automotive Metal Ceramic Coating Thickness
UNI-T UT343A UT343D Car Paint Coating Thickness Gauge Digital Meter FE NFE Tester for Automotive Metal Ceramic Coating Thickness
Regular price
Rs.31,499.00
Regular price
Rs.35,000.00
Sale price
Rs.31,499.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
UT343 series coating thickness gauge
It is a high-performance composite coating thickness gauge that integrates the measurement of iron and non-iron substrates. The product has the characteristics of high precision, stable and reliable performance, nondestructive measurement, etc., and has the functions and applications of professional paint measurement and judgment mode, measurement value voice broadcast, wireless Bluetooth APP, LED lighting, etc. in the automobile industry. It is a necessary instrument for automobile manufacturing, sales, evaluation, metal processing, coating, inspection and other industries. It is widely used in manufacturing industry, metal processing industry, aerospace, ships, motor vehicles, scientific research, quality supervision and other industries and fields
Main features of UT343A
-
The measurement method conforms to the magnetic method for measuring the thickness of non-magnetic coating on magnetic metal substrates (GB/T 4956).
-
The measurement method is in accordance with GB/T 4957 Eddy current method for thickness measurement of non-conductive coatings on non-magnetic metal substrates.
-
Two thickness measurement methods, magnetic and eddy current, can be used to measure the thickness of the non-magnetic coating on the magnetic metal substrate and the non-conductive coating on the non-magnetic metal substrate.
-
Automatic identification of ferrous and non-ferrous substrates.
-
It adopts high-precision sensors, which are precise, wear-resistant and stable.
-
Use single point and multi-point calibration methods for calibration,
-
Red, green and yellow warning lights indicate the current value attribute
-
Turn on/off and measure the sound prompt.
-
The screen display can be rotated up and down,
-
The mass storage chip can store 199 data.
Specification for UT343A
|
Specifications |
Range |
|
Certificates |
RoHS |
|
Measuring range |
0~1750um |
|
Accuracy |
±(3%H+1)um |
|
Measurement method |
Single/Continuous |
|
Measurement mode |
Max/Min/Avg |
|
Metal type |
Ferrous/non-ferrous |
|
Features |
|
|
Display type |
EBTN display |
|
LCD brightness control |
√ |
|
Rotatable screen |
√ |
|
Unit conversion |
√ |
|
Audio alarm |
√ |
|
LED alarm |
√ |
|
Data storage |
199 groups |
|
Auto power off |
√ |
|
Low battery indication |
√ |
|
General Characteristics |
|
|
Power |
1.5V battery (LR03) x 2 |
|
Product color |
Red and grey |
|
Product net weight |
About 111g |
|
Product size |
117mm x 53mm x 37mm |
|
Standard accessories |
Ferrous substrate, non-ferrous substrate |
|
Standard individual packing |
Gift box, English manual |

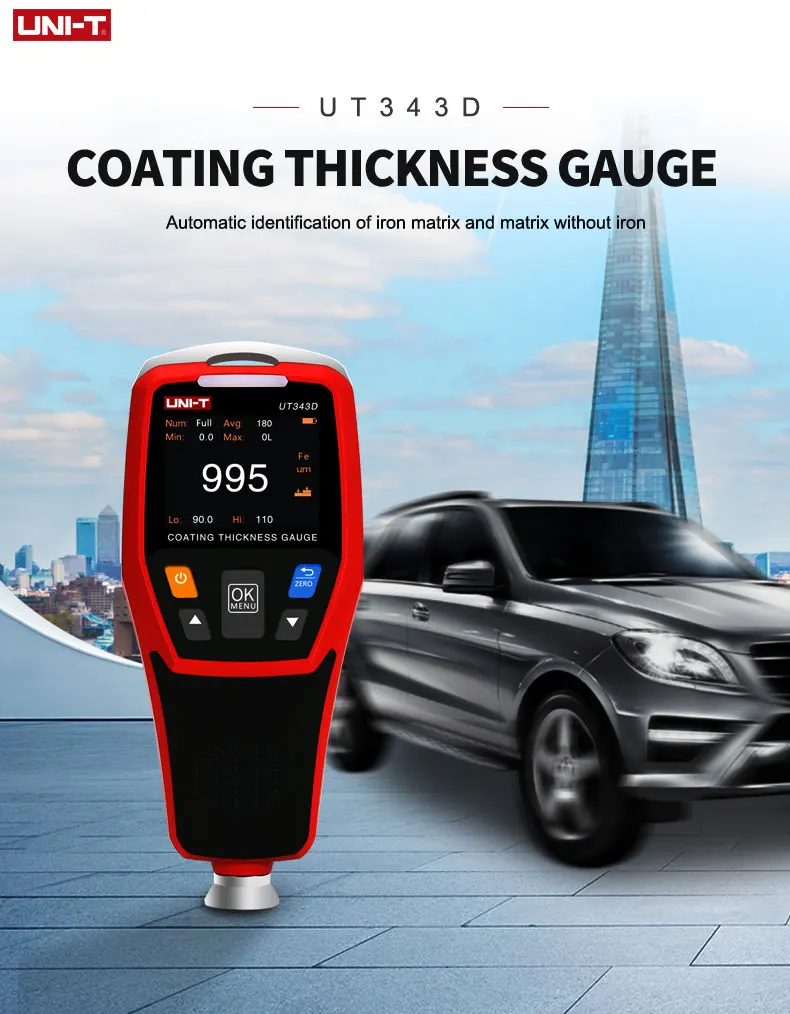

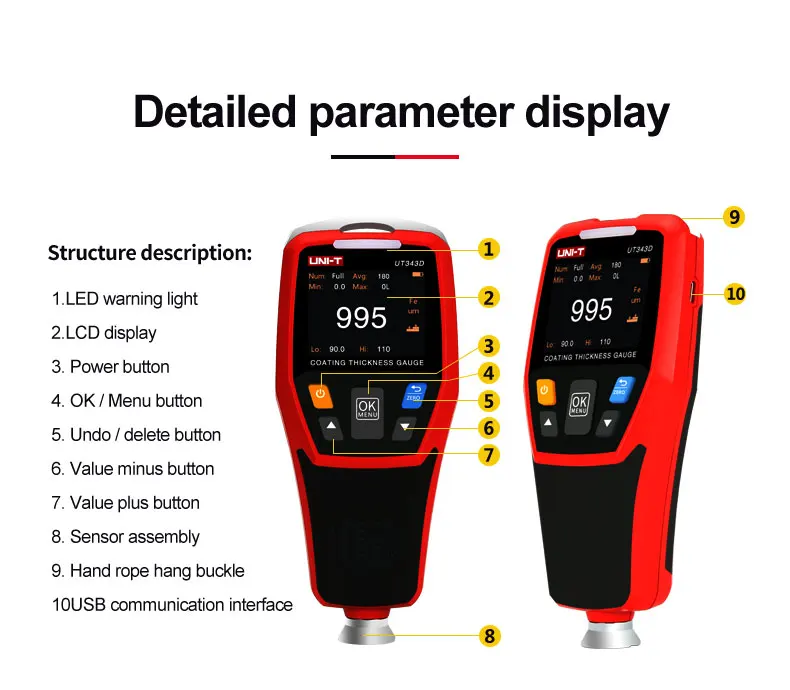

Main features of UT343D
-
Automatic identification of ferrous and non-ferrous substrates
-
The sensor adopts gem clamping technology, which is precise, wear-resistant and stable
-

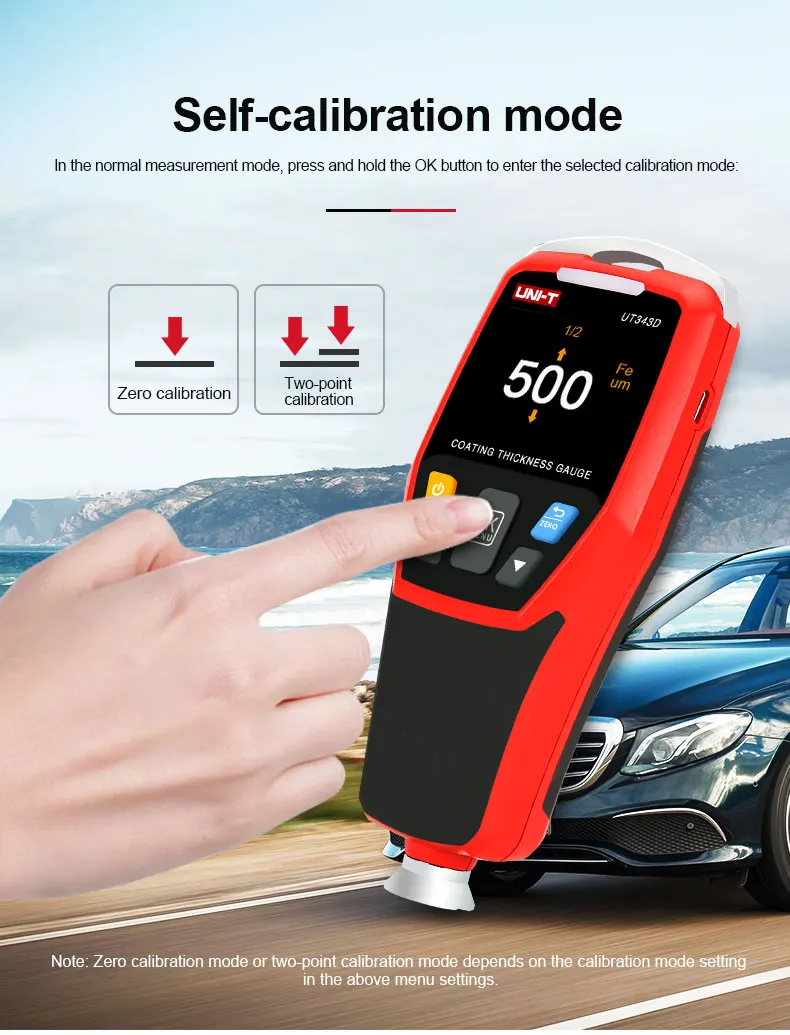

It has single point and two point calibration methods to ensure the accuracy of measurement
-

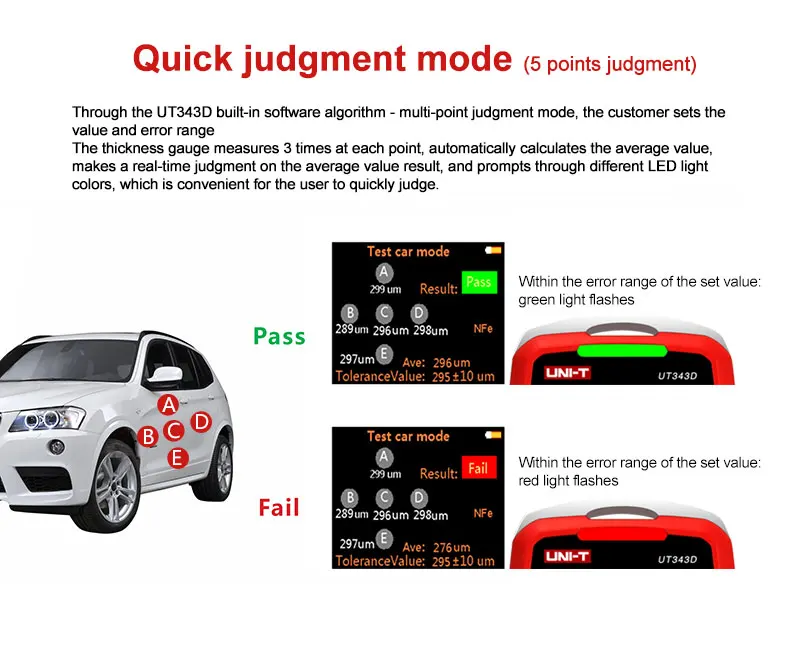

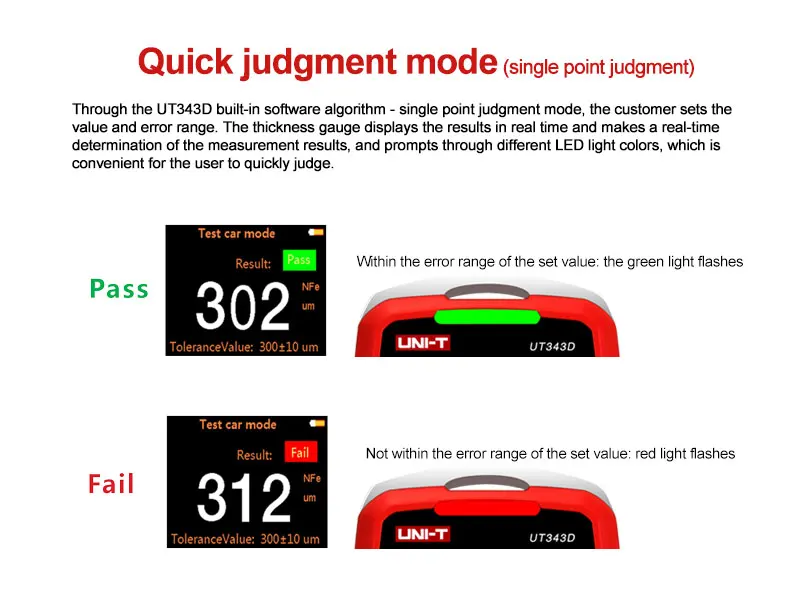

Quick judgment and prompt of single point and multiple points
-

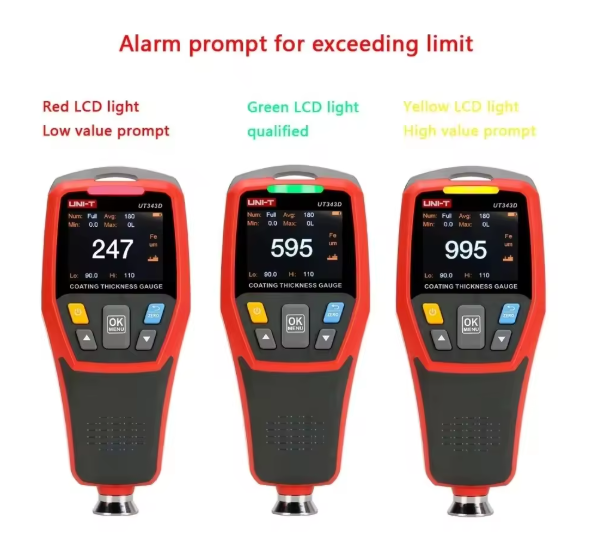

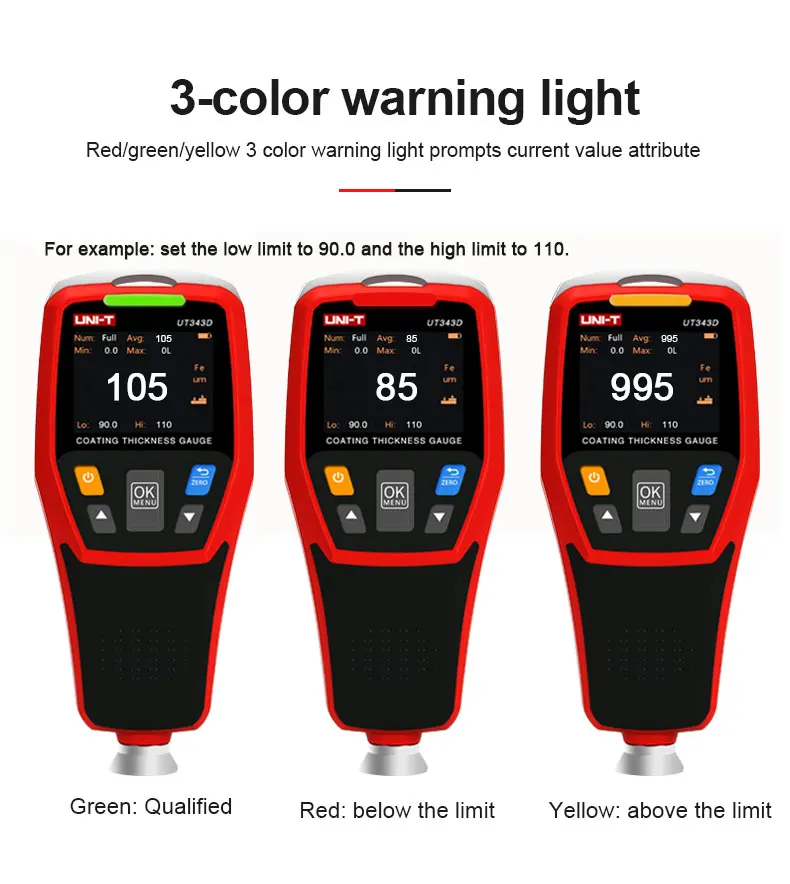

Red, green and yellow warning lights
-

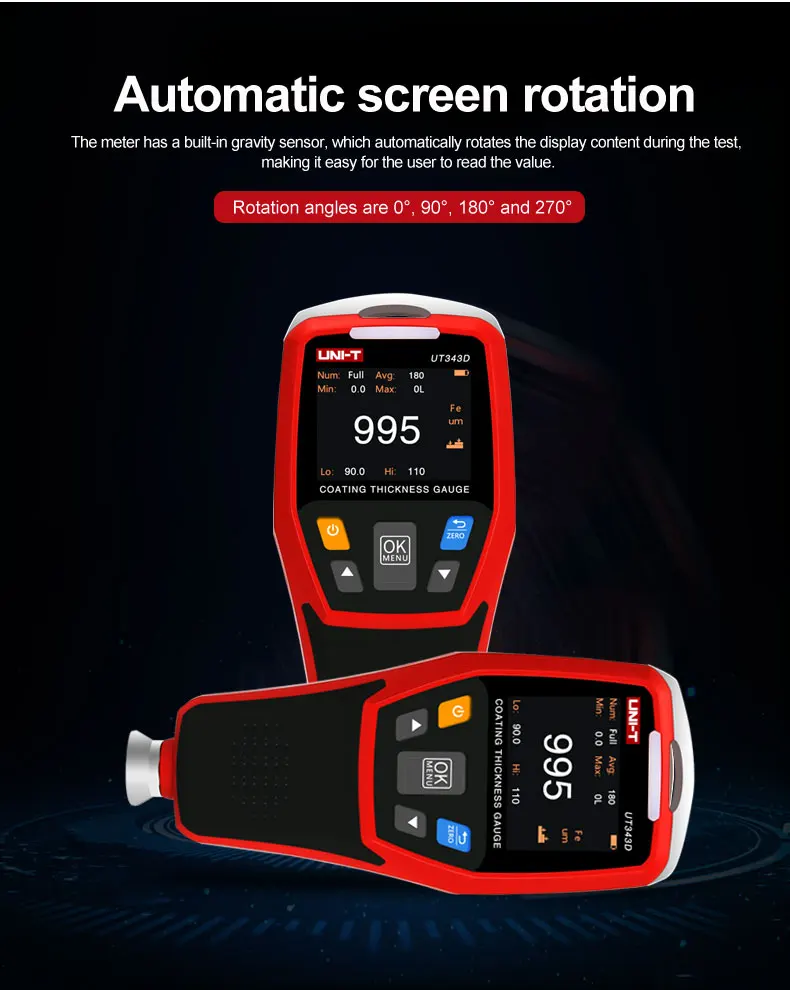

Automatic rotation of screen display
-
500 groups of stored data and USB data transmission

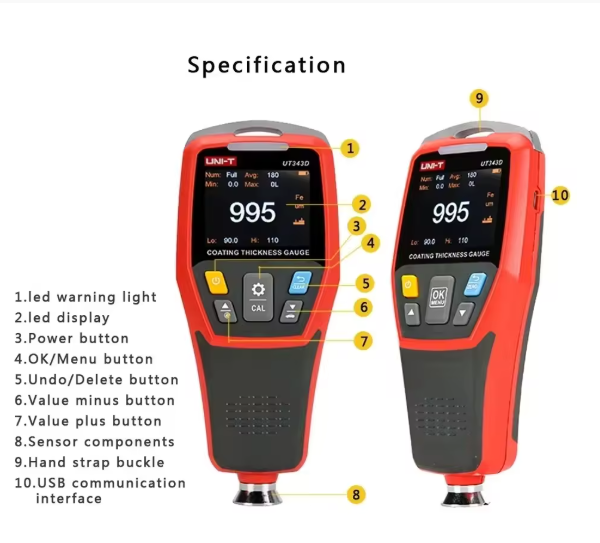

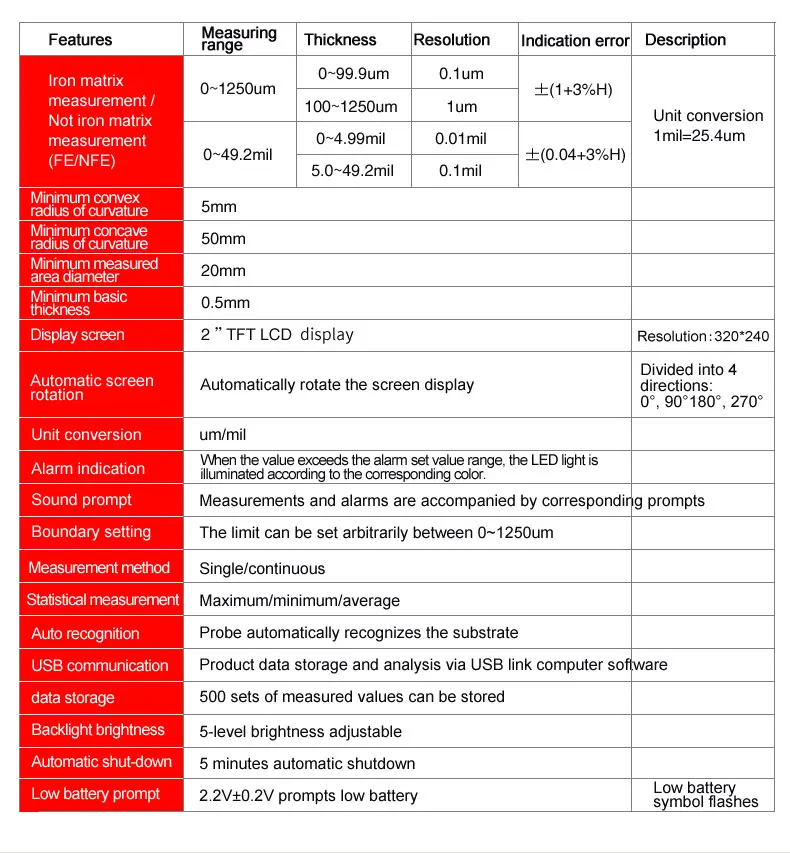

Specification for UT343D
|
Specifications
|
Range
|
|
Measuring range
|
0~1250um
|
|
Accuracy
|
±(3%H+1)um
|
|
Resolution
|
0.1um (0~99.9um); 1um (100~1250um)
|
|
Measurement method
|
Single/Continuous
|
|
Measurement mode
|
Max/Min/Avg
|
|
Metal type
|
Ferrous/ non-ferrous
|
|
Features
|
|
|
Display type
|

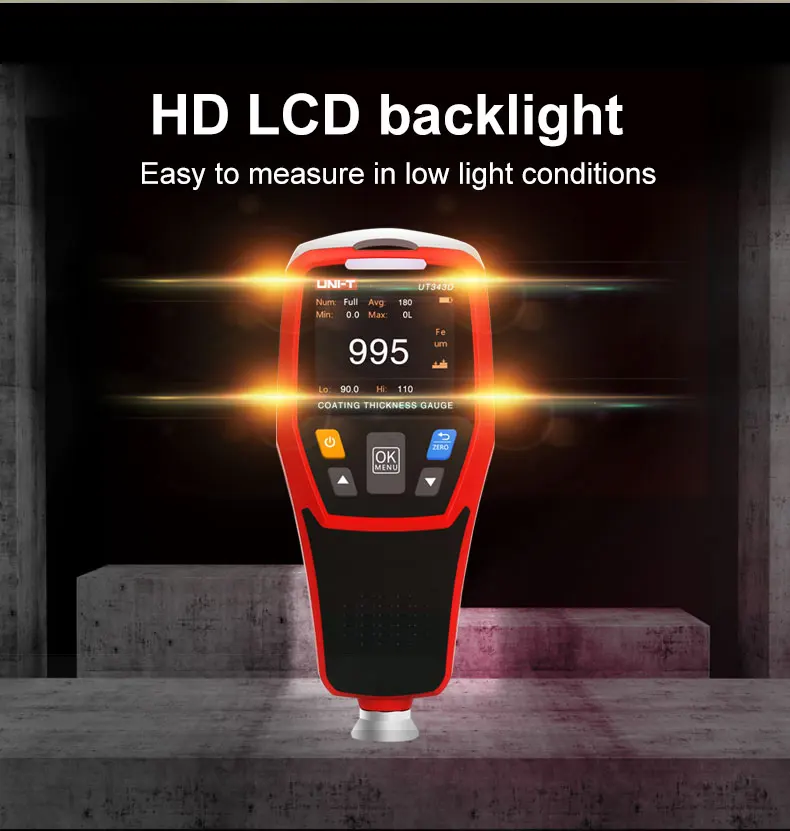

2.0-inches TFT LCD (320 x 240 pixels)
|
|
LCD brightness control
|
√
|
|
Auto rotatable screen
|
√
|
|
Unit conversion
|
√
|
|
Audio alarm
|
√
|
|
LED alarm
|
√
|
|
PC analysis software
|
√
|
|
USB communication
|
√
|
|
Quick test mode
|
√
|
|
Data storage
|
500 groups
|
|
Auto power off
|
√
|
|
Low battery indication
|
√
|
|
General Characterisitics
|
|
|
Power
|
3V battery (R03) x 2
|
|
Display
|
48mm x 36mm
|
|
Product color
|
Red and grey
|
|
Product net weight
|
175g
|
|
Product size
|
153.5mm x 64.5mm x 41mm
|
|

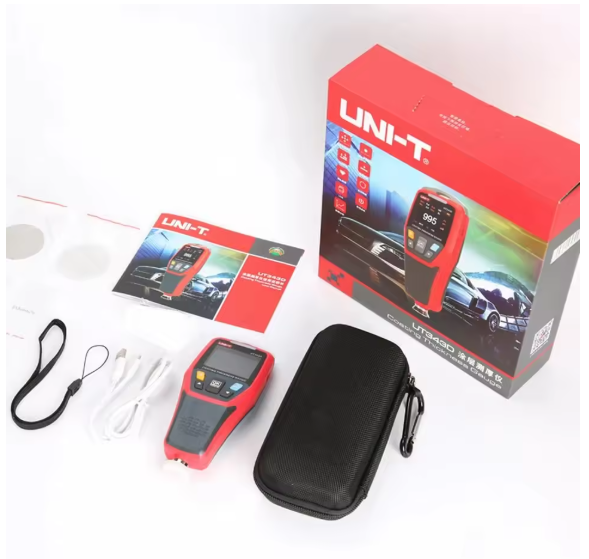

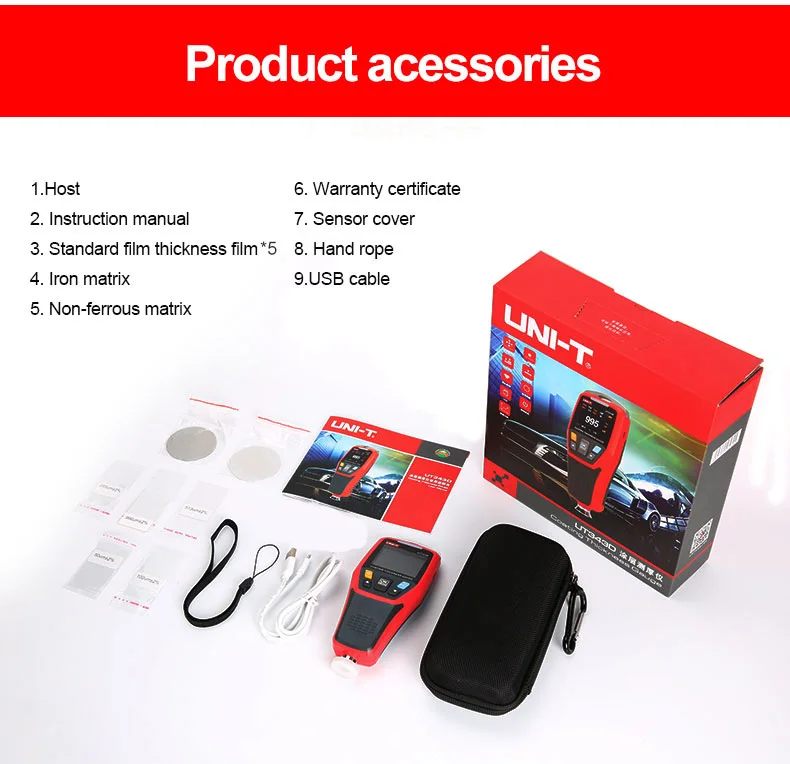

Standard accessories
|
Micro USB interface cable, standard piece, batteries, cloth bag
|
|
Standard individual packing
|
Gift box, English manual
|
|
Standard quantity per carton
|
20pcs
|
|
Standard carton measurement
|
355mm x 320mm x 195mm
|
|
Standard carton gross weight
|
7.5kg
|
